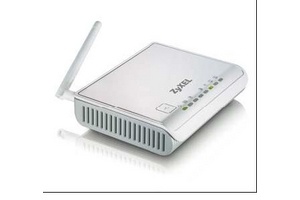

ZyXEL NBG-4115 - Wireless N-lite 3G Router

System Specifications

• WLAN Feature:
  • 802.11b/g and compliant with 802.11n draft
  • AP Mode
  • Auto Channel Scan
  • Wi-Fi Multimedia (WMM)
  • Wi-Fi Protected Setup (WPS)
  • Wireless Security: 64/128 bit WEP, WPA/WPA2
  • Mac Address Filtering
  • Wireless Scheduling
  • Output Power Management
  • Intra-BSS Traffic Block
• Support 3G/3.5G USB Dongle:
  • WCDMA, HSDPA, CDMA2000 & TD-SCDMA
• IP Routing
  • NAT (NAT session: 16000)
  • DHCP server on LAN
  • DHCP client on WAN
  • IGMP v1/v2
  • DDNS
• VPN Passthrough
  • IPSec
  • PPTP
  • L2TP
• Firewall
  • SPI
  • DOS
  • ICMP Blocking

Hardware Specifications

• LAN: Two 10/100Mbps Ethernet RJ-45 connector with auto MDI/MDIX support
• WAN:
  • One 10/100Mbps Ethernet RJ-45 connector with auto MDI/MDIX support
  • One USB 2.0 port for 3G USB Dongle
• One 2dBi external detachable dipole antennas
• WPS Push Button
• Reset Button
• Power: DC 12V, 1.25A

Physical Specifications

• Item Weight: 190g(0.42lb)
• Item Dimension: 140(W) x 110(D) x 30(H) mm(5.51"x4.33"x1.18")
• Packing Weight: 700g(glb)
• Packing Dimension: 247(W) x 155(D) x 61(H) mm(9.72"x6.1"x2.4")

Certification

• Safety: CE LVD
• EMC: CE, FCC, IC, NCC
• Others: Wi-Fi 11b/g, WMM, WPS, Vista Baseline

Package Contents

• Wireless 3G Router
• One Removable Antenna
• Power Adapter
• Ethernet Cable
• Quick Start Guide
• Support CD
• Warranty Card
