1000BASE-SX mini GBIC (850nm), 550m

Highlight Features

• Max. power consumption 1.5 W
• Hot pluggable SFP MSA compliant
• Digital optical monitoring capability for strong diagnostic capabilities
• Compliant with IEEE 802.3z Gigabit Ethernet
• Class 1 Laser safety and RoHS compliant

As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 1G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

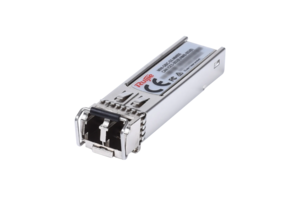

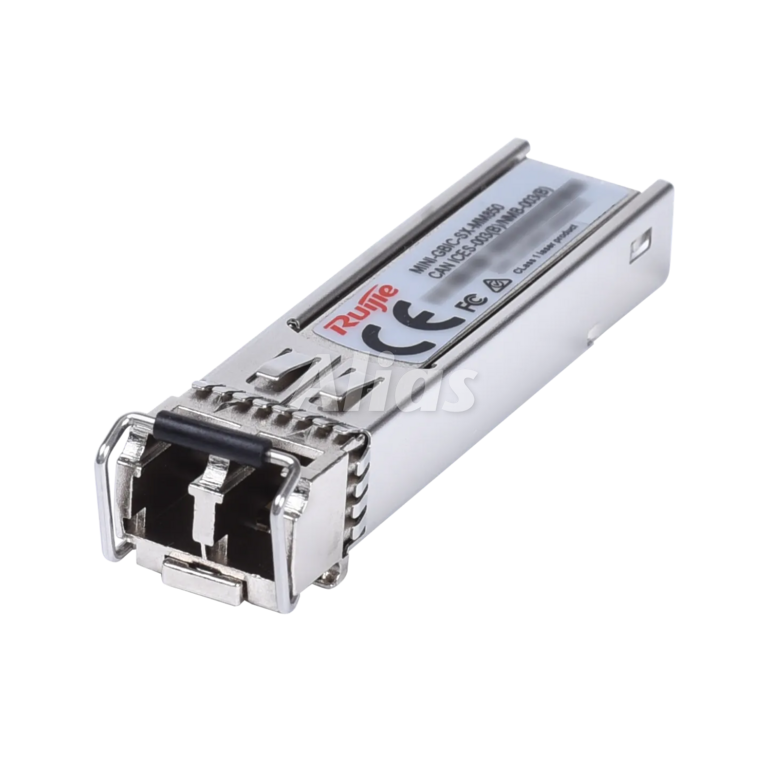

MINI-GBIC-SX-MM850 Module

The MINI-GBIC-SX-MM850 is aligned to IEEE 1000BASE-SR optical specifications and supports a link length of up to 550 meters over a multimode fiber (MMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ Multisource Agreement (MSA), and RoHS standards.
